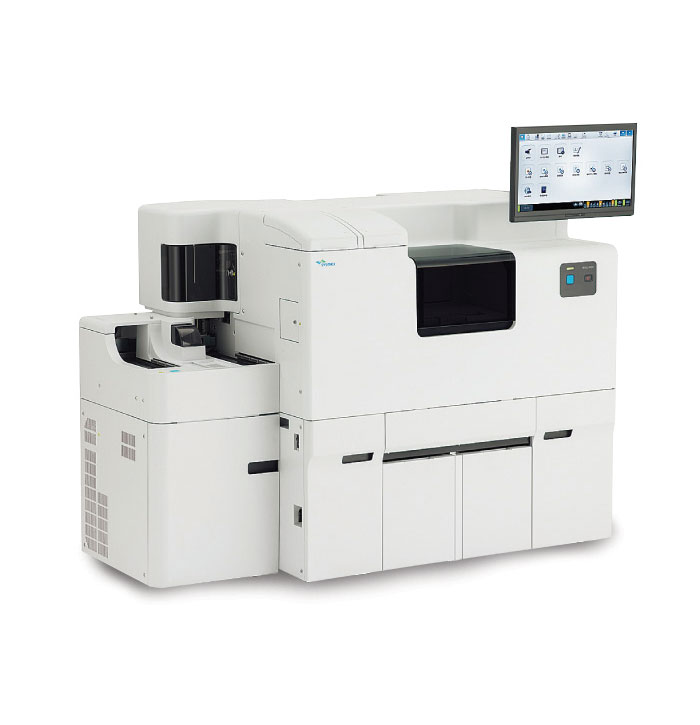

HISCL-5000

Add to wishlist
Category:

HISCL-5000 is a fully automated immunoassay system designed for fast, highly sensitive and reliable immunoassay testing.

HISCL-5000

The HISCL-Series offer rapid reaction time with throughput of up to 200 tests per hour and continuous loading feature for enhanced laboratory efficiency and productivity, best suited for medium to high throughput laboratories.

  • Rapid analysis – 17 mins for all assays
  • Highly sensitive and specific – by incorporation of the brilliant CDP-STAR chemiluminescent substrate and adoption of bound-and-free (B/F) wash separation
  • Low sample volume – Only 10 to 30 µL sample is required, allows accurate testing while conserving precious samples
  • STAT position – For immediate access to emergency testing
  • Continuous Loading – For longer walk-away operational time
  • Wide measurement range – Reduction in repeat testingor sample dilution
  • High usability – Capacity for 24 assays, RFID Technology
  • Carryover Prevention – With single use pipette tips and membrane filterfor minimised carryover contamination
  • Sysmex Network Communication System (SNCS) – for online QC and online customer support

*The HISCL-5000 are only available in Philippines, Malaysia, Indonesia, Vietnam, Thailand and India.

For more product information, please contact your local Sysmex agent.

Measurement Principle Chemiluminescence Enzyme Immunoassay (CLEIA)
Number of Parameters Onboard- Up to 24 Parameters
Processing Capacity 200 tests per hour
Reaction Time Approximately 17 minutes (time from sample aspiration to measurement result display)
Number of Samples Set Up Up to 100 samples loading capacity
Number of STAT Positions 1 sample
Required Specimen Volume 10 – 30µL
Sample Container Test tube (open)
Diameter (outer diameter): 13 – 16mm
Height: 75 – 100mm
Dead Volume The depth of the serum or plasma component from the surface of liquid is 5mm or more
Sample Cup 4 mL conical cup
Dead volume 0.15mL
Reagent Management Function – R1, R2, R3 reagents, Luminescence substrate set RFIDline washer, cleaning fluid, probe washer: barcode
Data Storage 100,000 sample results (maximum)
Precision Management L-J (Chart) or X-bar (Chart)
External Output RS232C, LAN
Power Specifications – Analyser AC 200 – 240 V AC
Pneumatic Units 220 V AC
Rated Frequency 50 Hz/60 Hz
Printing System External printer
Accessory Handheld barcode reader
Options Drainage tank, indicator light, conveyance connection kit
Main Unit
  • Dimensions (W x D x H) Approx. 1,725 x 840 x 1,300 mm (including thesampler)
  • Weight Approx. 490 kg
Compressor
  • Dimensions (W x D x H) Approx. 300 x 500 x 390 mm
  • Weight Approx. 28 kg
Features & Benefits
  • Rapid analysis – 17 mins for all assays
  • Highly sensitive and specific – by incorporation of the brilliant CDP-STAR chemiluminescent substrate and adoption of bound-and-free (B/F) wash separation
  • Low sample volume – Only 10 to 30 µL sample is required, allows accurate testing while conserving precious samples
  • STAT position – For immediate access to emergency testing
  • Continuous Loading – For longer walk-away operational time
  • Wide measurement range – Reduction in repeat testingor sample dilution
  • High usability – Capacity for 24 assays, RFID Technology
  • Carryover Prevention – With single use pipette tips and membrane filterfor minimised carryover contamination
  • Sysmex Network Communication System (SNCS) – for online QC and online customer support

*The HISCL-5000 are only available in Philippines, Malaysia, Indonesia, Vietnam, Thailand and India.

For more product information, please contact your local Sysmex agent.

Specifications
Measurement Principle Chemiluminescence Enzyme Immunoassay (CLEIA)
Number of Parameters Onboard- Up to 24 Parameters
Processing Capacity 200 tests per hour
Reaction Time Approximately 17 minutes (time from sample aspiration to measurement result display)
Number of Samples Set Up Up to 100 samples loading capacity
Number of STAT Positions 1 sample
Required Specimen Volume 10 – 30µL
Sample Container Test tube (open)
Diameter (outer diameter): 13 – 16mm
Height: 75 – 100mm
Dead Volume The depth of the serum or plasma component from the surface of liquid is 5mm or more
Sample Cup 4 mL conical cup
Dead volume 0.15mL
Reagent Management Function – R1, R2, R3 reagents, Luminescence substrate set RFIDline washer, cleaning fluid, probe washer: barcode
Data Storage 100,000 sample results (maximum)
Precision Management L-J (Chart) or X-bar (Chart)
External Output RS232C, LAN
Power Specifications – Analyser AC 200 – 240 V AC
Pneumatic Units 220 V AC
Rated Frequency 50 Hz/60 Hz
Printing System External printer
Accessory Handheld barcode reader
Options Drainage tank, indicator light, conveyance connection kit
Main Unit
  • Dimensions (W x D x H) Approx. 1,725 x 840 x 1,300 mm (including thesampler)
  • Weight Approx. 490 kg
Compressor
  • Dimensions (W x D x H) Approx. 300 x 500 x 390 mm
  • Weight Approx. 28 kg
