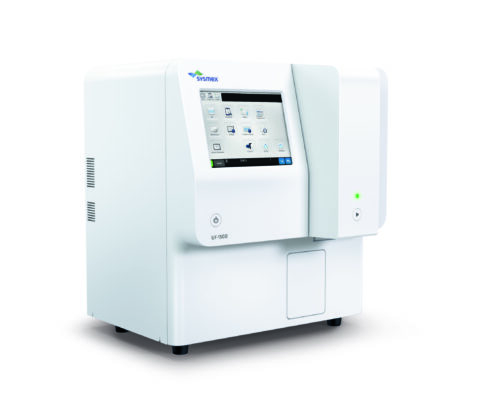

UF-1500
Compact
Fast and reliable particle analysis with fluorescence flow cytometry
Advanced parameters to support clinical decision making
Automate and standardise manual workflow procedures
Flexible configuration options for your perfect match
Proven technology in a Compact size
The UF-1500 is an ideal solution for small-to-medium laboratories, being about 30% smaller than our flagship UF-5000 while delivering the same high-quality and reliable results with our florescence flow cytometry (FFC) technology.
| Dimensions / weights W x H x D [mm / kg] |
Analyser: approx. 550 × 630 × 560/52 Main unit (incl. SA-52): 630 × 630 × 626/60 Pneumatic unit: 280 × 400 × 355/17 |
| Technologies | Fluorescence flow cytometry with blue semi-conductor laser and hydrodynamic focussing in two different channels conductometry |
| Parameters (urine) | Diagnostic RBC, NL RBC, WBC, WBC Clumps, EC, Squa.EC, Non SEC, Tran.EC, RTEC, CAST, Hy. CAST, Path. CAST, BACT, X’TAL, YLC, SPERM, MUCUSResearch Use Only (RUO)* SRC, Atyp.C, Cond., Osmo., SF_TC, CW_TC, CB_TC, SF_OTHERS, CW_OTHERS, DEBRIS, RBC-P70FSC, RBC-FSC-DW, Large RBC, Small RBC, Lysed RBC |
| Throughput | Up to 60 samples/hour |
| Sampling volume | 2 mL (sampler mode), 0.6 mL (STAT mode) |
| Aspiration volume | 680 μL (sampler mode), 520 μL (STAT mode) |
| Sampler unit capacity | 50 samples (entry area), 50 samples (exit area) |
| Interface (optional) | U-WAM |
| Web application (optional) | Caresphere™ XQC |
*Parameters for research use only
- Features & Benefits
-
Proven technology in a Compact size
The UF-1500 is an ideal solution for small-to-medium laboratories, being about 30% smaller than our flagship UF-5000 while delivering the same high-quality and reliable results with our florescence flow cytometry (FFC) technology.
- Specifications
-
Dimensions / weights
W x H x D [mm / kg]Analyser: approx. 550 × 630 × 560/52
Main unit (incl. SA-52): 630 × 630 × 626/60
Pneumatic unit: 280 × 400 × 355/17Technologies Fluorescence flow cytometry with blue semi-conductor laser and hydrodynamic focussing in two different channels
conductometryParameters (urine) Diagnostic
RBC, NL RBC, WBC, WBC Clumps, EC, Squa.EC, Non SEC, Tran.EC, RTEC, CAST, Hy. CAST, Path. CAST, BACT, X’TAL, YLC, SPERM, MUCUSResearch Use Only (RUO)*
SRC, Atyp.C, Cond., Osmo., SF_TC, CW_TC, CB_TC, SF_OTHERS, CW_OTHERS, DEBRIS, RBC-P70FSC, RBC-FSC-DW, Large RBC, Small RBC, Lysed RBCThroughput Up to 60 samples/hour Sampling volume 2 mL (sampler mode), 0.6 mL (STAT mode) Aspiration volume 680 μL (sampler mode), 520 μL (STAT mode) Sampler unit capacity 50 samples (entry area), 50 samples (exit area) Interface (optional) U-WAM Web application (optional) Caresphere™ XQC *Parameters for research use only
